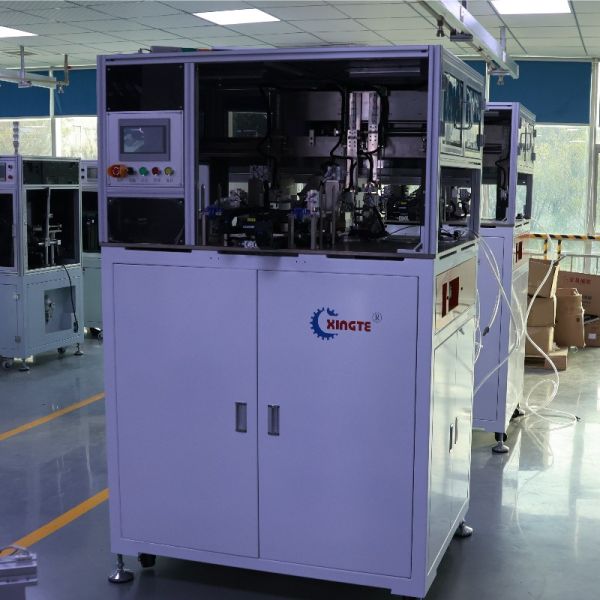

High-precision Automatic Three Phase common mode Choke And Inductor Hook Winding Machine XT-CH001-3 with PLC control system
XT-CH001-3 is a fully automatic Three Phase common mode Choke for various Doughnut shape cores,
It is the most versatile machine for wire diameters from 0.5-2.5mms. stable and durable.
This machine can have single winding, two windings, three windings
Product Features
The Fully automatic Three three-phase choke and Inductor Hook Winding Machine has revolutionized the manufacturing industry, enabling the production of large quantities of advanced chokes and inductors in a short time. Its automated system ensures precise wire and cord bundling, enhancing efficiency and accuracy. Moreover, the machine's durability and reliability make it a sound investment for industries requiring frequent use of chokes and inductors.
Furthermore, this advanced technology has elevated the quality of chokes and inductors by utilizing top-quality materials, resulting in optimal performance. The seamless, accurate, and consistent winding process eliminates errors and defects, leading to increased production output and cost savings.
The machine's user-friendly interface makes it accessible to novice users, reducing the reliance on skilled labor in the manufacturing industry. Overall, the Fully automatic Hook Winding Machine has significantly impacted productivity and reduced production costs, enabling the effortless production of high-quality chokes and inductors.
Machine Winding Product Display
3-phase common mode T60*30*19 wire diameter 2.5mm, 13 turns on one side, 2 layers
Actual production capacity = 105 pieces/hour
Applications
- Power electronics.
- Power line input filter.
- Radio interference suppression in motors.
- Suppression for common mode noise.
- Frequency converter.
- Power supplies.
- Charging stations.
Product parameters
| Model | XT-CH001-3 |
| Wire Diameter : | 0.5 ~ 2.5mm |
| Coil outer diameter | 15-50mm |
| Coil inner diameter | ＞8 mm |
| Wire length | 100-1600mm |
| hook speed | 0.6-1.2s/turn |
| number of working stations: | 2 stations |
| Power supply | AC220V,50/60Hz |
| Power | 3.5KW |
| Air pressure | 0.6MPa |
| Machine dimensions | 1900*1150*2200mm |
| Machine weight | Approx. 650KGS |
| Model | XT-CH001-3 |
| Wire Diameter : | 0.5 ~ 2.5mm |
| Coil outer diameter | 15-50mm |
| Coil inner diameter | ＞8 mm |
| Wire length | 100-1600mm |
| hook speed | 0.6-1.2s/turn |
| number of working stations: | 2 stations |
| Power supply | AC220V,50/60Hz |
| Power | 3.5KW |
| Air pressure | 0.6MPa |
| Machine dimensions | 1900*1150*2200mm |
| Machine weight | Approx. 650KGS |
